简谱 (jiǎnpǔ) - Chinese Numbered Notation
The ensemble performs all of its songs using scores written in jianpu - a numbered notation system originating from France, but very popular in China
In jianpu the numbers 1 - 7 represent the notes of the scale (or more specifically the scale degree), and the score will tell you at the top what key you are playing in by listing 1= root note (eg. 1 = C is the key of C major).
So, as you can see in the example below, if the score is in C major then1= C, 2 = D, 3 = E, etc.
An octave above is indicated by a dot placed above the number, and an octave below is indicated by a dot below the number.
A single number represents a single beat/crotchet, and lines are placed below notes to shorten their length by half. One line below = a quaver , two lines below = a semiquaver, etc.
Dashes after a note lengthen it, with each dash representing a lengthening of one beat/crotchet, i.e in the key of C: 1 - - - would represent four beats/a semibreve of C.
An example score

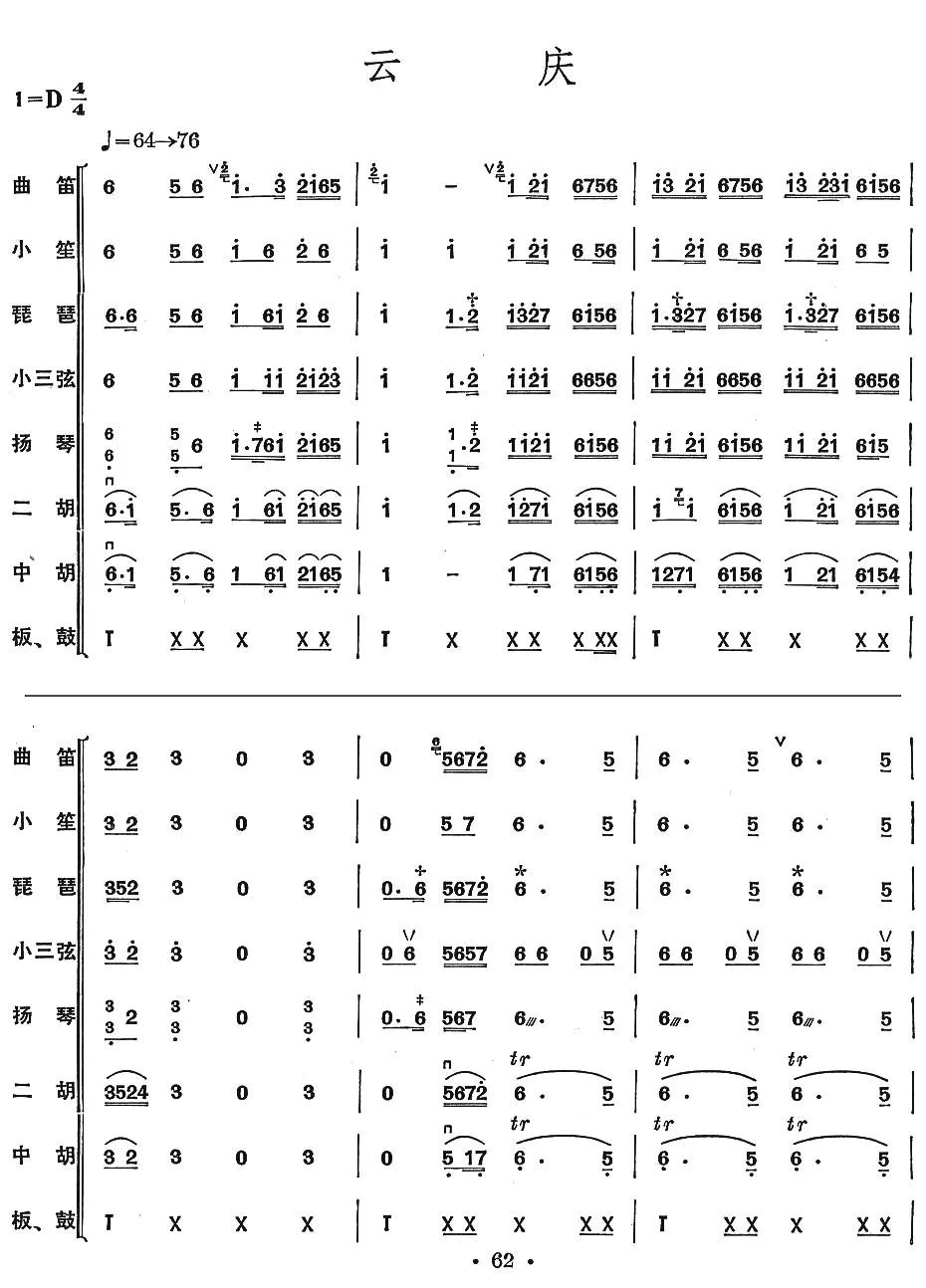

Below is an example score from an old Jiangnan Sizhu style piece, 云庆 (Yún qìng).
You can see the score is divided up into eight parts, which in this case are individual instruments (pipa, erhu, yang qin, etc).
At the top left the score tells you to play in the key of D, in 4/4 time, and at a speed of 64 - 76 BPM.
The top centre is the title of the piece (云庆 / Yún qìng).
The top right will usually have the name of the composer, however in this case it is a very old piece, so no composer is listed.
Other scores will be divided into sections rather than individual instruments, such as:
吹管 (Chuīguǎn) - Wind
拉弦 (Lā xián) - Bowed Strings
弹拨 (Tánbō) - Plucked Strings低音 (Dīyīn) - Bass
打击 (Dǎjí) - Percussion
Many of the dynamics and other notations for jianpu are much the same as you would find in western scores, but with jianpu there are also often instructional notes in Chinese, along with a huge array of instrument specific symbols (although there aren’t many examples of these in the score excerpt below).
We are currently working on some PDF resources to help non-Mandarin speakers make sense of these additional notations, but we also explain these to new members so if you are thinking of joining but are feeling daunted by the notation, please don’t be worried!
Below is a video of the ensemble performing this piece in the ANU School of Music Recording Studio, so you can listen and follow the excerpt below (the first 6 bars).
composing in jianpu
We have tried to find a good English language jianpu score-writing program which can score for the whole ensemble.
Unfortunately there are few resources available, however we have had success with the following:
EOP NMN MASTER
EOP NMN Master - This is our top selection, as it is free, easy to use, has a lot of instrument specific notation, and allows for multiple lines of instrumentation in a score.
While it is free, there are some functions which don’t work unless you pay to register. We have used the free version and the paid version, and would say that the free version will be fine for most things, but we enjoy the added functionality of the paid version.
SIMPERHU
Simperhu - this is a free package that allows you to type simple jianpu into a word document. Simperhu was developed for writing scores for erhu, and for this it is very efficient - the key commands allow you to type out music very quickly and with very results.
The two main restrictions for using Simperhu for arranging for the whole ensemble are that the program only allows you to stack two numbers above each other at a time (as erhu only has two strings!) and while the symbol set is very comprehensive for erhu it doesn’t have many of the symbols specific to other instruments, eg. pipa (which has notoriously many).
We have found several workarounds and have successfully arranged existing scores with five parts.
Unfortunately as Microsoft 365 continues to update we have found Simperhu to become increasingly difficult to use. We can usually resolve the issues, but it is a lot of troubleshooting, which is time and energy we aren’t using to compose or arrange scores!
